Fast & strong: Delock offers diversity in NVMe / U.2

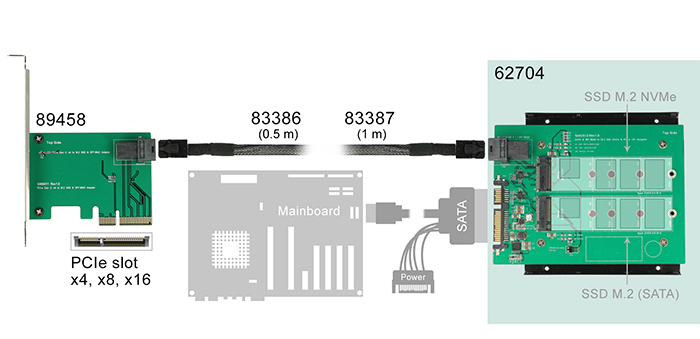

This converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format with key B and a M.2 SSD in 2280, 2260, 2242 and 2230 format with key M. It allows the possibility to connect a M.2 SSD based on PCIe and M.2 SSD based on SATA at the same time.
The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the SFF-8643 interface while using a PCIe M.2 SSD.
SATA 22 pin / SFF-8643 NVMe > 1 x M.2 Key M + 1 x M.2 Key B
* M.2 with Key M or Key B+M (PCIe/ SATA )
* Led for power and activity

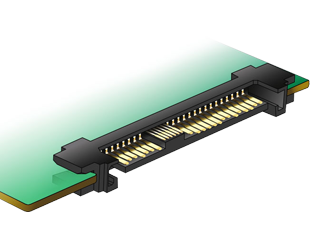

U.2 is applied for NVMe SSDs n 2.5" format, used to be labeled as SFF-8639. In 2015, SFFWG names it "U.2"

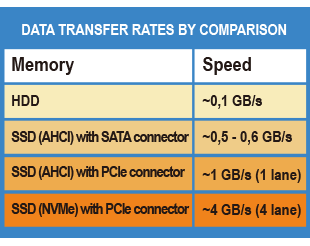

NVM express ( = (NVMe) is a sophisticated Data transfer protocol for PCIe Bus and successor of AHCI (Advanced Host Controller interface ) that was published in 2011.

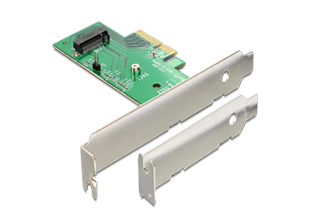

PCI Express x 4 Card >
1 x internal NVMe M.2 Key M 80 mm - Low Profile Form Factor

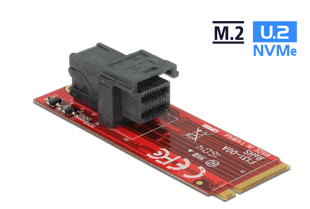

Adapter M.2 Key M > SFF-8643 NVMe

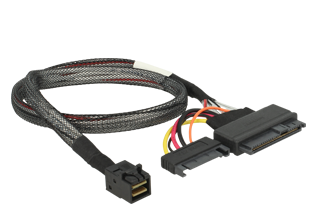

Cable SFF-8643 male > U.2 SFF-8639 + SATA power connector 50 cm
