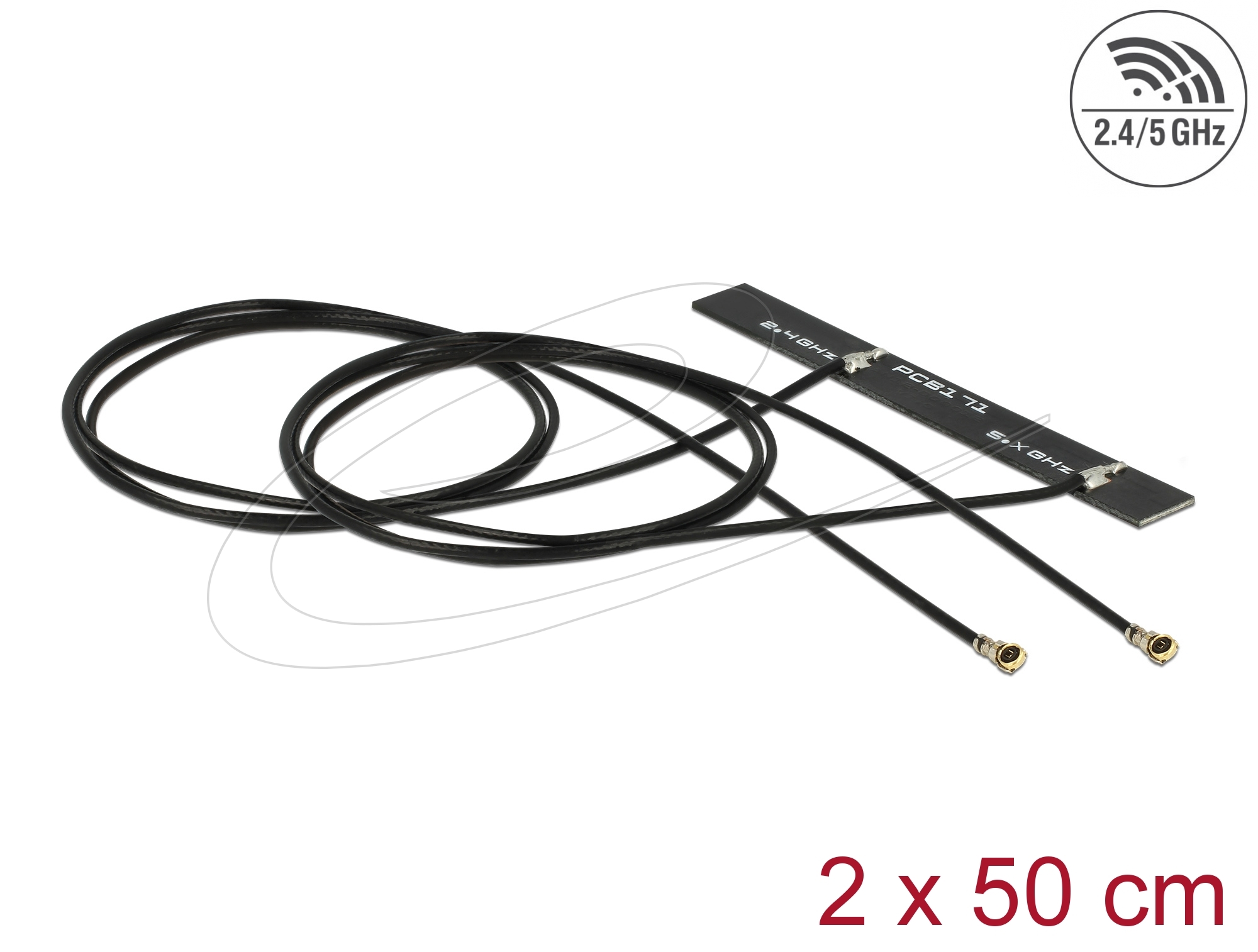

Delock Dual Band WLAN WiFi 6 Twin Antenna 2 x I-PEX Inc., MHF® 4L plug 3 - 5 dBi 1.13 2 x 50 cm PCB internal self adhesive

Description

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

Technical details

• Connector: 2 x I-PEX Inc., MHF® 4L plug
• Frequency range:
  2400 - 2500 MHz
  5150 - 5850 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 3 - 5 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 61.60 x 7.00 x 1.60 mm
• Length incl. connectors (L): 2 x ca. 50 cm

System requirements

• Device with two free I-PEX Inc., MHF® 4L connectors

Package content

• Antenna

Package

• Zip poly bag
