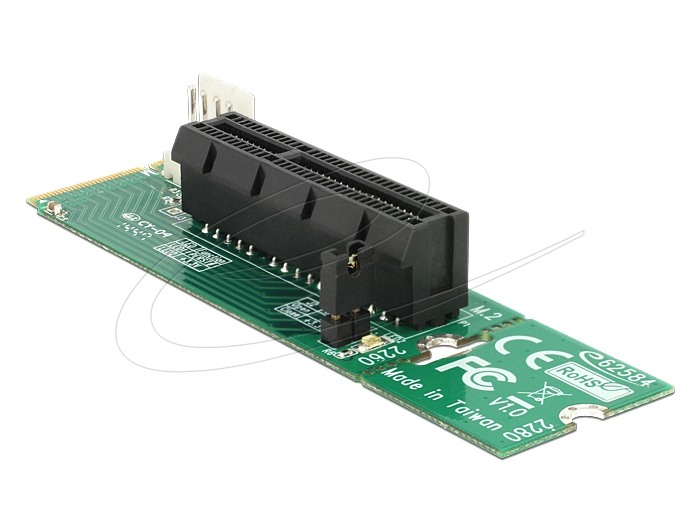

Delock Adapter M.2 Key M male to PCI Express x4 Slot
Item No. 62584
Description

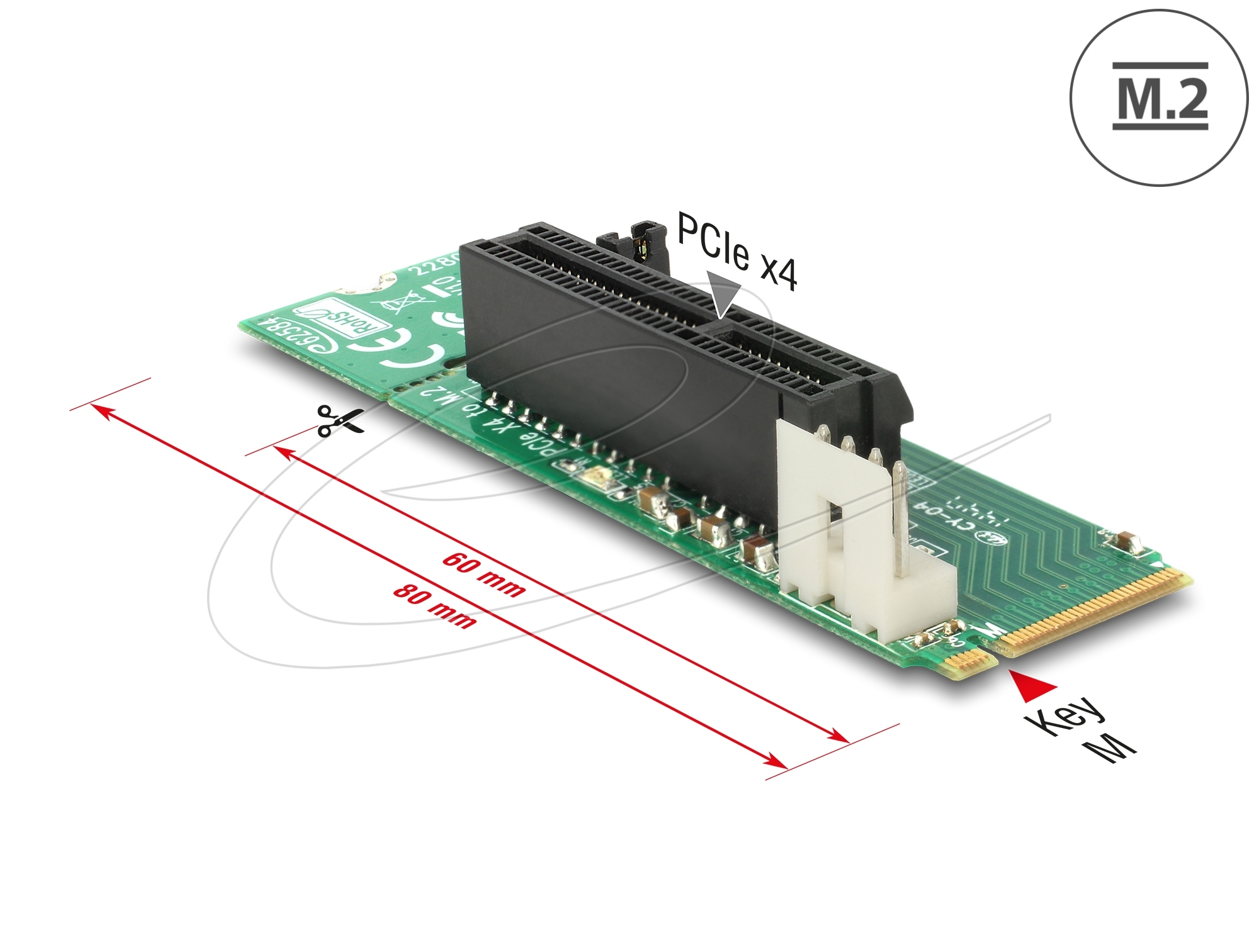

This adapter by Delock can be used to connect a PCI Express card to the M.2 key M interface. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
Technical details
- Connector:
1 x 67 pin M.2 Key M male
1 x PCI Express x4 slot, rev. 4.0
1 x 4 pin power connector - Interface: PCIe
- Form factor: 2280 or 2260
- Suitable for M.2 slot with key M based on PCIe
- Supports NVM Express (NVMe)
- 2 x LED indicator
- Bootable
- OS independent, no driver installation necessary
System requirements
- A free M.2 interface with key M
Package content
- Adapter M.2 > PCI Express
- Fixing screw for M.2 adapter

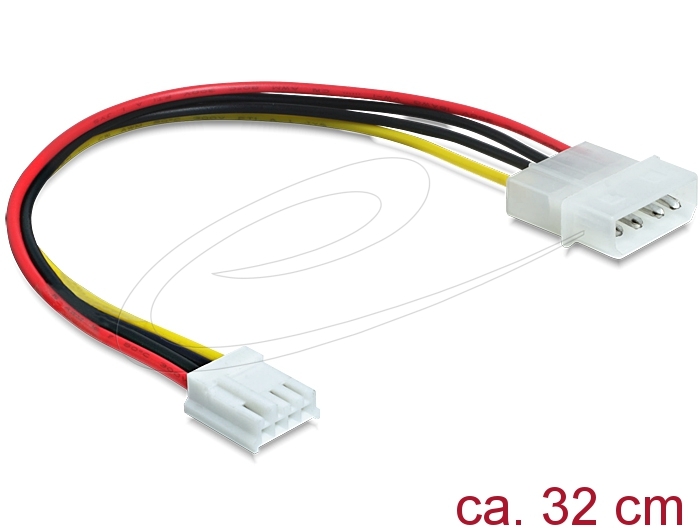

- Power cable
Package
- Retail Box
