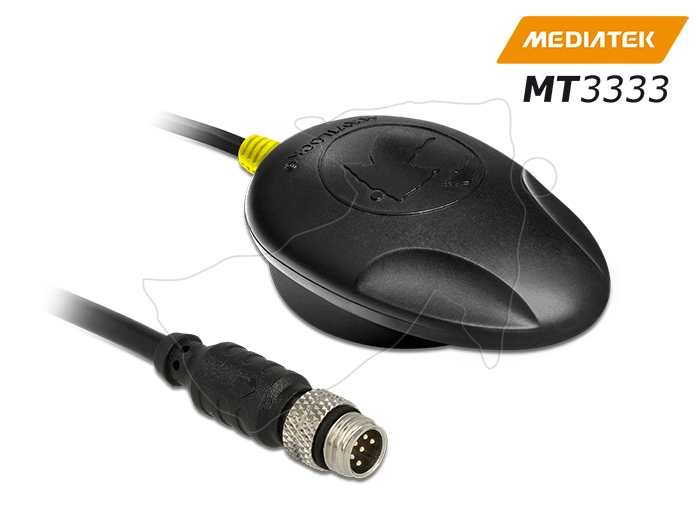

Navilock NL-3330 M8 Serial Multi GNSS Receiver MT3333 0.5 m

Item No. 60325

Description

The M8 serial multi GNSS Receiver based on MT3333 chipset has a built-in antenna for high sensitivity. It is possible to use this GNSS receiver with a laptop and suitable routing software for navigation. The M8 universal connector is waterproof and enables the connection of optional connecting cables with many different connectors.

M8 Converter-Series

Technical details

  • Connector:
    Connector: 1 x M8 Navilock waterproof connecting plug
  • Chipset vendor / type: MediaTek MT3333
  • Frequency:
    GALILEO: E1, 1575.4200 MHz
    GPS: L1, 1575.4200 MHz
    GLONASS: G1, 1602 (k x 0,5625) MHz
  • Channels: 33 tracking, 99 acquisition
  • Supports NMEA 0183 V3.01 protocols: GGA, GSA, GSV, RMC, VTG
  • Baud rate: 9600 bps
  • Update rate: 1 - 10 Hz
  • Sensibility: max. -165 dBm
  • Cold start in ca. 34 seconds
  • Hot start in ca. 1 second
  • Reacquisition in ca. 1 second average
  • Positioning accuracy:
    2.5 m CEP (Circular Error Probable)
    2.0 m CEP with SBAS (Circular Error Probable)
  • Speed: 0.1 m/s
  • Datum: WGS 84
  • Dynamic limits:
    Acceleration limit: smaller than 4 g
    Height limit: 18000 m
    Speed limit: 515 m/s
  • Power supply: 5 V DC
  • Current consumption: max. 45 mA
  • rotection class: IPX6
  • Magnetic, non-slip on the bottom
  • LED-indicator for GPS status
  • Operating temperature: -20 °C ~ 60 °C
  • Cable length: ca. 0.5 m
  • Dimensions (LxWxH): ca. 65 x 45 x 22 mm

System requirements

  • Windows Vista/7/8/8.1/10, Linux Kernel 2.6
  • M8 connection cable

Package content

  • M8 serial receiver
  • Navilock support CD incl. driver and user manual

Package

  • Retail Box
